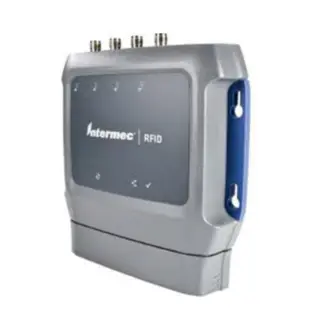

IF2 Network Reader
- General Purpose
- Input/Output (GPIO): Four input (0-40 VDC) and four output (0-48 VDC, 0.25 amp) circuits, powered via PoE or DC input (500 mA, 12 VDC)
- RF Characteristics
- Antenna Connections: Four reverse-polarity (RP) TNC ports configurable for mono- or bi- static operation. Antenna fault detection and auto tuning for best performance
- Output Power: 1 to 30 dBm, configurable in 1 dB steps (calibrated above 9 dBm)
- Frequency Ranges: FCC (902-928 MHz) and ETSI (865-868 MHz), factory configured
- Connectivity
- Communications: 10/100 BaseT Ethernet RS-232, USB for configuration
- Input Power: PoE (802.3at compliant) DC power input (12 VDC +/-5%, 30W), sealed/locking connection. Requires optional Intermec 100/240 VAC converter.
- Optional Expanded Memory
- Support for embedded C# .NET and Java applications
- 96 MB of flash application memory
- 96 MB of flash data storage
- 64 MB of available RAM
- Accessories
- Intermec approved antennas, antenna cables
- Physical Characteristics
- Length: 18.85 cm (7.42 in)
- Length w/splashguard: 19.9 cm (7.87 in)
- Width: 16.31 cm (6.42 in)
- Height: 4.32 cm (1.70 in)
- Weight: 1.0 kg (2.2 lbs)
- LED Status Indicators: RFID service, power, PoE, Ethernet, tag detection, and antenna port connection status
