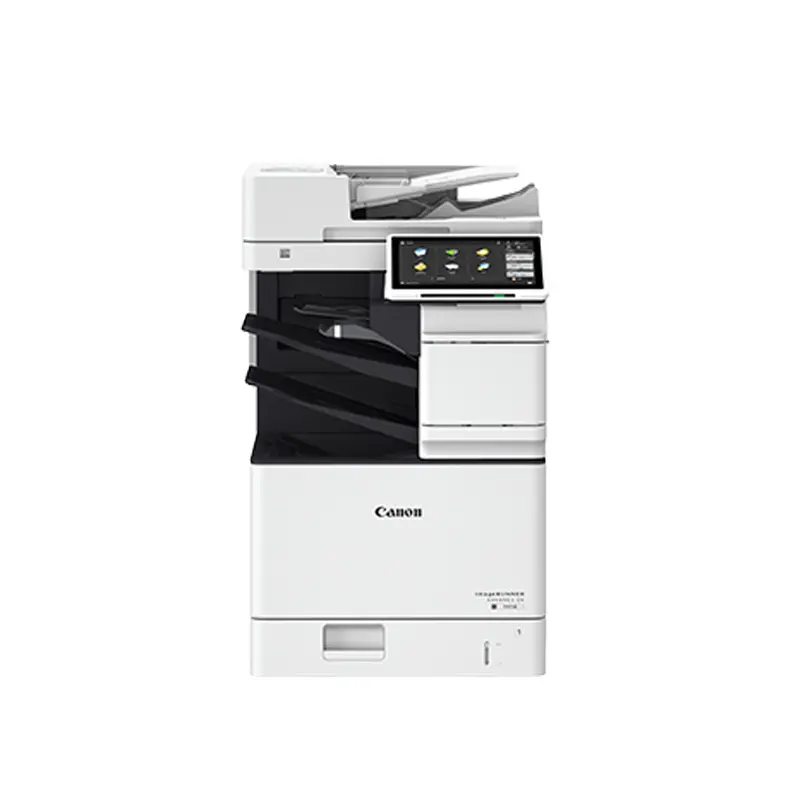

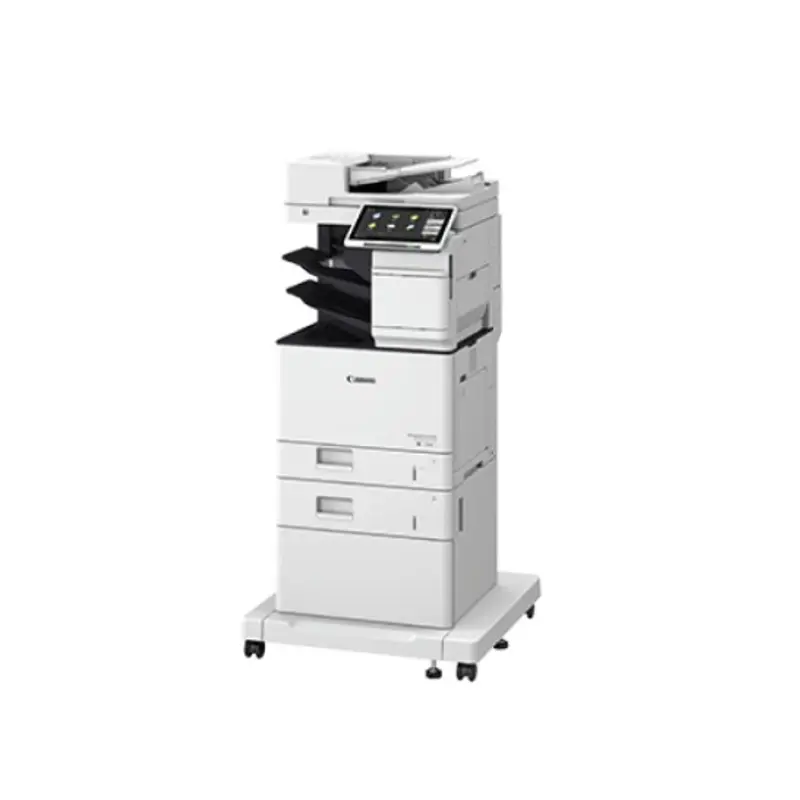

ImageRUNNER ADVANCE DX717iZ / 617i

Machine Type

A4 Monochrome Laser Multifunctional

Core Function

Print, Copy, Scan, Send and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

10.1" TFT LCD WSVGA Color Touch panel

Memory

Standard: 3.0GB RAM

Hard Disk Drive

Standard*1: 320GB (available disk space: 250GB)

Interface Connection

NETWORK

Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

Optional: NFC, Bluetooth Low Energy

OTHERS

Standard: USB 2.0 x1 (Host) x 2, USB 3.0 (Host) x1, USB 2.0 (Device) x1

Optional: Copy Control Interface

Paper Supply Capacity (A4, 80gsm)

Standard: 650 Sheets

100-sheets Multi-purpose tray x1

550-sheets Paper cassette x1

Maximum: 3,300 Sheets (with High Capacity Cassette Feeding Unit-D1)

Paper Output Capacity (A4, 80 gsm)

iR-ADV DX 617i: 500 sheets

iR-ADV DX 717iZ: 1,000 sheets

Finishing Capabilities

iR-ADV DX 617i: Collate, Group

iR-ADV DX 717iZ: Collate, Group, Offset*2, Staple

Supported Media Types

Multi-purpose tray:

Thin, Plain, Recycled, Heavy, Color, Transparency, Bond, Envelope

Paper Cassette:

Thin, Plain, Recycled, Heavy, Color, Labels, Bond, Pre-punched

Supported Media Sizes (Standard)

Multi-purpose tray:

Standard size: A4, A5, A5R, A6, B5

Custom size: 76.2 x 127.0 mm to 216.0 x 355.6 mm

Envelope: COM10 No.10, Monarch, DL, ISO-C5

Paper Cassette:

Standard size: A4, A5, A5R, A6, B5

Custom size: 99.0 x 148.0 mm to 216.0 x 297.0 mm

Supported Media Weights

Multi-purpose tray: 60 to 199 gsm

Cassettes: 60 to 135 gsm

Duplex: 60 to 120 gsm

Warm-up Time

Quick Startup Mode: 4 seconds or less*3

From Sleep Mode: 10 seconds or less

From Power On: 10 seconds or less*4

Dimensions (W x D x H)

iR-ADV DX 617i: 500 x 598 x 617 mm

iR-ADV DX 717iZ: 502 x 598 x 814 mm

Installation Space (W x D)

Standard model / Finisher model: 1,052 x 823 mm (with left CRG door open + right door open + the cassette drawer open)

Weight

iR-ADV DX 617i: Approx. 37 kg including toner

iR-ADV DX 717iZ: Approx. 46 kg including toner

Print Speed*5 (ppm)

iR-ADV DX 717iZ

Up to 71 ppm (A4), Up to 113 ppm (A5), Up to 40 ppm (A5R, A6)

iR-ADV DX 617i

Up to 61 ppm (A4), Up to 99 ppm (A5), Up to 35 ppm (A5R, A6)

Print Resolution (dpi)

600 x 600

Operating System

UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019

PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later)
