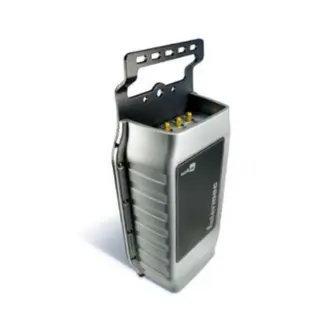

IV7 Vehicle Mount RFID Reader
- RF Characteristics
- Antenna Connections: Four mono-static RF ports. FCC -Reverse SMA. ETSI - Standard SMA.
- Output Power: 10 to 30 dBm, adjustable in 1 dBm calibrated increments
- Frequency Ranges: FCC (902-928 MHz) or ETSI (865-868 MHz), factory configured to meet regional regulatory requirements
- Compatible Intermec Vehicle Mount Computers: CV30; CV41; CV60; CV61
- Communications Interface: RS232
- Software: Application software for IV7 will reside on the “host” vehicle-mount computer. Application program interface (API), Basic Reader Interface (BRI), demonstration and example applications software are included in the RFID Resource Kit, available through Intermec’s Developers’ Library.
- Standard Features: 4 Antenna Connections; 4 General Purpose Inputs/ 4 Outputs
- Accessories: Vehicle-mount DC power cable kit, Antennas, and antenna cables
- Physical Characteristics of the Reader
- Length: 34.3 cm (13.5”)
- Height: 9.5 cm (3.75”)
- Width: 23.6 cm (9.3”)
- Weight: 3.08 kg (6.8 lbs)
