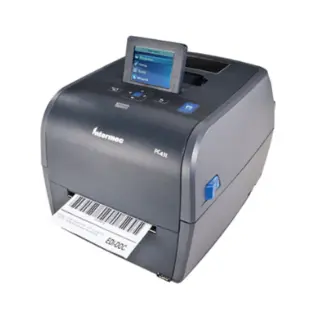

PC43t (300DPI) Thermal Transfer Desktop Label Printer

PRINT SPECIFICATIONS

• Maximum Label Width: 118 mm (4.65 in)
• Maximum Label Length: Standard: 203 dpi – 1727 mm (68 in); 300 dpi – 900 mm (35 in)
• Print Direction: Prints text, barcodes and graphics in all four directions
• Print Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)
• Print Width: 203 dpi – max. 104 mm (4.1 in); 300 dpi – max. 106 mm (4.2 in)
• Printing Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300 dpi

BARCODE SYMBOLOGIES

All major one-dimensional barcode symbologies are available, plus two-dimensional and composite codes: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

INTERFACE

• Standard: USB Device Type B connector v.2.0 high speed, USB Host Type A connector v.2.0 high speed
• Field-Installable: Ethernet 10/100 Mbps module, Dual radio module (802.11 b/g/n and Bluetooth V2.1), USB to Serial adapter (RS-232), USB to Parallel adapter

DIMENSIONS

• ​Height: 182 mm
• Width: 227 mm
• Depth: 281 mm
• Weight: 2.7 kg
