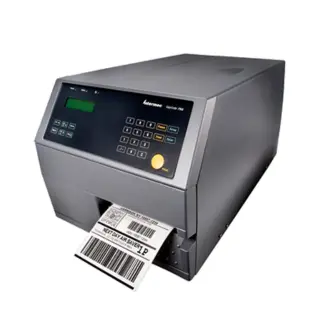

PX4i High Performance Industrial Printer
- Physical Description: Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.
- Bar Code Symbologies: All major 1D and 2D symbologies are supported.
- Max. Print Width: 112 (DT)/110 (TT) mm (4.4/4.3 in)
- Max. Length: 4095 mm (161 in) at 203 dpi; 2775 mm (109 in) at 300 dpi; 1016 mm (40 in) at 406 dpi
- Print Speed: 100 - 300 mm/s (4 - 12 ips) for 203/300dpi; 100 – 250 mm/s (4 – 10 ips) for 406 dpi
- Media
- Type: Labels & Tags
- Max/Min Width: 120/ 25.4mm (4.72/ 1 in)
- Thickness: 2.4 to 10.0 mil
- Configuration: Roll-fed or fanfold
- Sensing: Gap, notch, black mark, continuous
- Label Roll Max Diameter: 213 mm (8.38 in)
- Label Roll Core: 38-76mm (1.5-3 in)
- Type: Ribbons
- Roll Max Diameter: 80 mm (3.15in), approx. 450m
- Core ID: 25.4 mm (1”)
- Type: Wax, mid-range, resin
- Interfaces
- Standard: Ethernet 10/100 Mbps; RS-232, up to 115.2 kB/s
- Optional: Parallel IEEE 1284; Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port); Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop, Applicator Interface
- Wireless: IEEE 802.11 b/g; Wi-Fi Certified, Cisco® Compatible (CCX) version 3 Certified; WEP, WPA, WPA2, 802.11x (EAPTTLS, LEAP, PEAP, FAST), 802.11i; Multiple industrial antenna options for maximized coverage
- Software
- Printer Command Languages: IPL, Fingerprint/Direct Protocol, ZSim (ZPL), DSim (DPL), XML enabled for SAP® AII and Oracle® WMS
- Applications / Drivers: InterDriver™ Windows printer driver; Intermec label design and print package; PrintSet for printer configuration
- Development Software: Intermec Fingerprint Application Builder™ (IFAB) (RFID libraries included)
- Device Management Support: SmartSystems™; Wavelink Avalanche™
- Graphics: Supports PCX file format. (Fingerprint Only); Other graphic formats supported with Label Generation Tools
- LxHxW: 482 x 238 x 275 mm (19.0 x 9.4 x 10.8 in)
- Weight: 12.85 kg (28.4 lbs)
- Options: RFID, integral self-strip unit with liner takeup, Label Taken Sensor (LTS), Compact Flash (CF) memory, various international double byte fonts, alphanumeric keyboard*, parallel interface board, additional serial interface board*, industrial interface board*, applicator interface board*, real time clock, media supply hub, cutter, label low sensor
